A級

½" A(直徑12.7mm以內)(Within12.7mm Diameter)

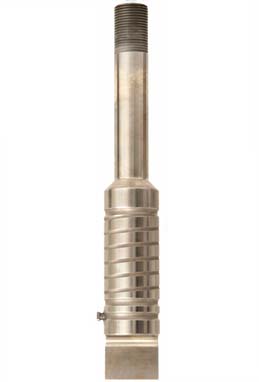

節能彈簧組-打擊頭Super Tec Punch Head

冲芯Punch

導套Punch Guide

防跳料下模Slug Free Die

B級

1¼" B(直徑31.7mm以內)(Within31.7mm Diameter)

節能彈簧組-打擊頭Super Tec Punch Head

冲芯Punch

導套Punch Guide

防跳料下模Slug Free Die



Quick-Adjusting Tooling Characteristic:

1.Quick-adjusting tool of punch length.

2.Last longer tool life 2~3 times to compare    ordinary tool.

3.No matter the spring pressure connect to    the punch long or short, then the pre-    strength accompanies same.

4.The springs all purchase from Japan, no    matter to punch thin steel plate or thick    steel plate. The tension ultra may avoid    jumping anticipates event and so on pulling    force insufficiency. Also reduced tool    damage.

5.For SECC sheel material, can be punch    6mm thickness maximum.

   For SUS sheel material, can be punch    3mm thickness maximum.

節能彈簧組特性:

1.可快速調整到需要的尺寸

2.模具壽命增加2-3倍

3.彈簧壓力不論冲芯長或短,則預力皆相同

4.本公司彈簧皆採購自日本,不論冲打薄板或    厚板,彈力超強可避免跳料及拉力不足等    問題,也減少模具損壞

5.適用SECC板材,可冲打至6mm板厚

   適用SUS板材,可冲打至3mm板厚
